- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
154Q56H15 010

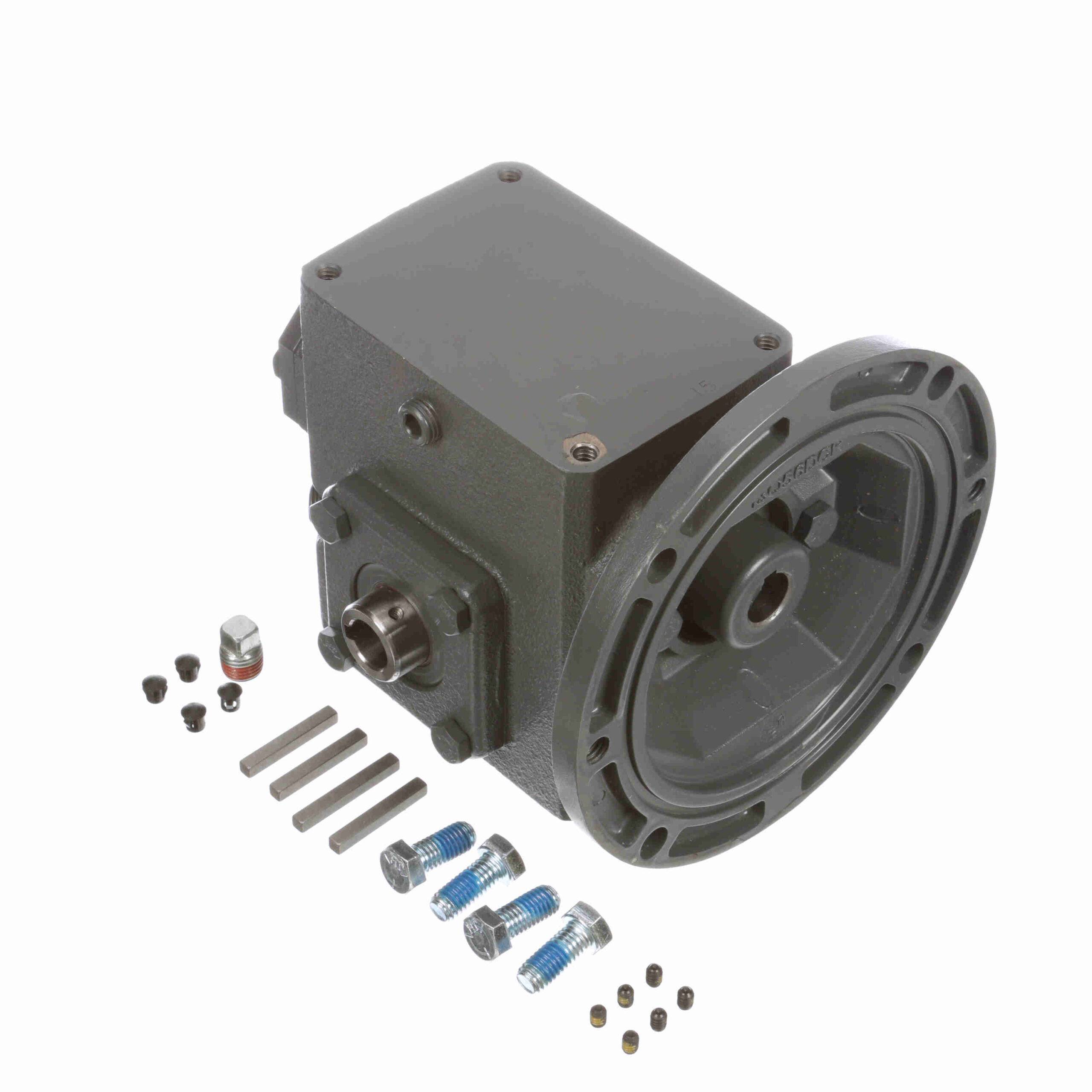

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 154Q56H15 010
$1,441.09
Out of stock
Out of stock
| Ratio: | 15:1 | Thrust Rating - output shaft: | 1144 |
|---|---|---|---|
| Input Speed: | 1750 | Reducer Style: | Standard |
| Input Keyway (C Face): | 3/16 x 3/32 | Motor Frame Size: | 56C |
| Efficiency: | 80 | Input Bore (C Face): | 0.625 |
| Input Diameter (in): | 0.625 in | Frame Size: | 56C |
| Product Type: | Worm Speed Reducer | Ratio Range: | 15:1 |
| Series Code: | Raider | Input HP @ 1750 RPM: | 1.003 |
| Center Distance (in): | 1.54 | Gear Type: | Worm |
| Input Style: | C-Face Quill | No. of Gear Reductions: | Single |
| Output Diameter (in): | 0.625 in | Mounting Style: | Shaft Mt |
| Service Factor: | 1 | Output Shaft Direction: | L or R |
| Overhung Load Rating (Output Shaft(lb)): | 860 lb | Housing Material: | Cast Iron |
| Output Shaft: | Hollow Bore | Output Torque Rating (in-lb): | 446 in-lbs @1750 input RPM in/lbs |
| UPC: | 6, 62288E+11 | Weight: | 18.12 LB |
| Packaged Length: | 12.3 Inches | Packaged Width: | 12.3 Inches |
| Packaged Height: | 11.7 Inches |
