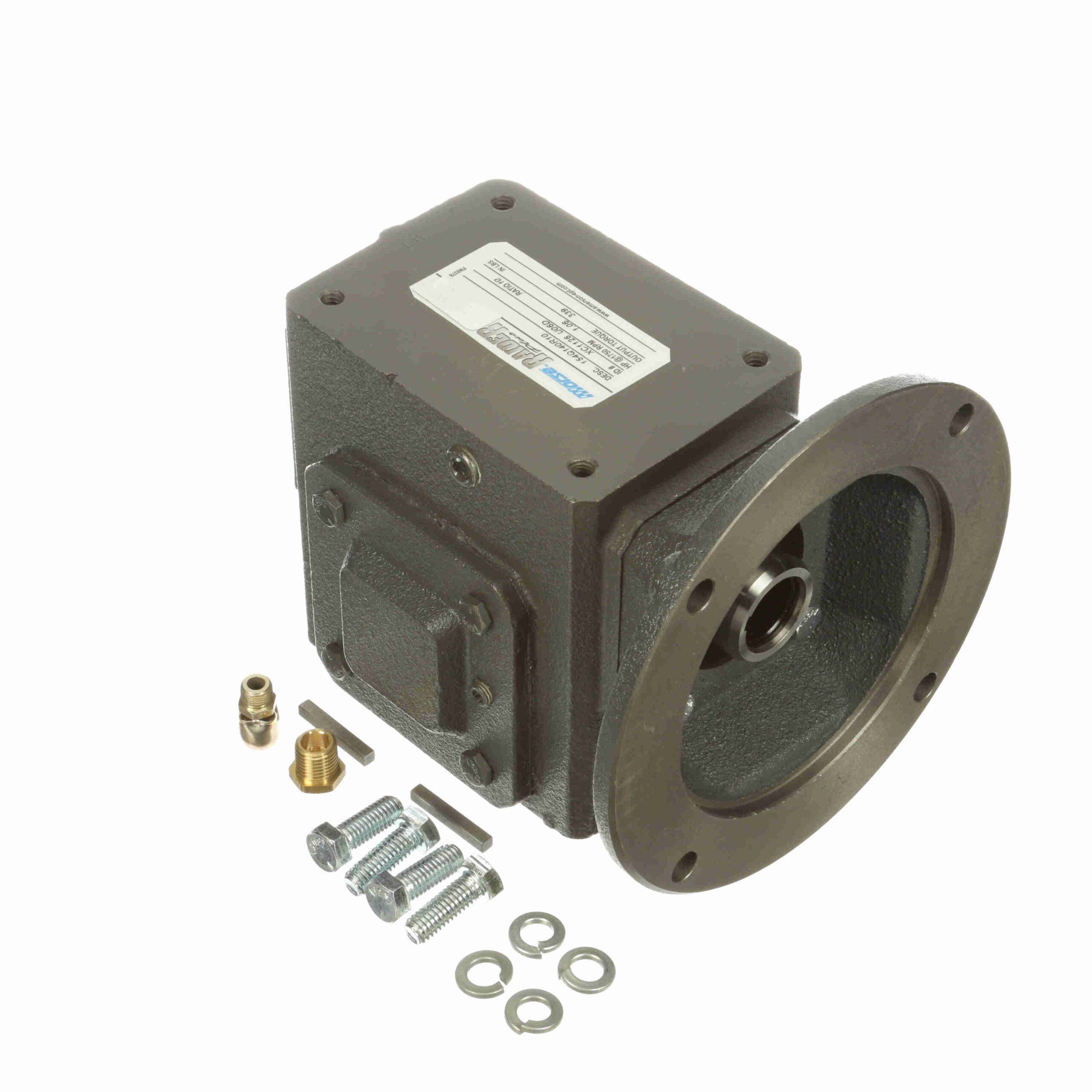

154Q140R10

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Bore (C Face):	0.875	Input Keyway (C Face):	3/16 X 3/32
Thrust Rating - output shaft:	1001	Input Speed:	1750
Reducer Style:	Standard	Shaft Seal Material:	Nitrile
Efficiency:	80	Motor Frame Size:	140TC
Ratio:	10:1	Manufacturer Reducer Size:	154
Maximum Input HP:	1.279 hp @ 1750 rpm	Output Diameter (in):	0.750 in
Output RPM:	175	Output Key:	3/16 X 1.25
Output Shaft Assembly Code:	R	Product Type:	Worm Speed Reducer
Input Style:	C-Face Quill	Ratio Range:	10:1
Model Code:	154Q	Series Code:	Raider
Gear Type:	Worm	Reducer:	Worm - Right Angle
Input HP @ 1750 RPM:	1.06	Mounting Style:	No Base
Center Distance (in):	1.54	Service Factor:	1
Input RPM:	1, 75	Input Diameter (in):	0.875 in
Frame Size:	140TC	No. of Gear Reductions:	Single
Assembly:	Q-R	Output Shaft Direction:	Right
Output Shaft:	Solid Shaft	Housing Material:	Cast Iron
Overhung Load Rating (Output Shaft(lb)):	388 lb	Output Torque Rating (in-lb):	402 in-lbs @1750 input RPM in/lbs
UPC:	6, 62288E+11	Weight:	23.79 LB
Packaged Length:	9.4 Inches	Packaged Width:	9.3 Inches
Packaged Height:	8.8 Inches
