- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
154Q140H15 010

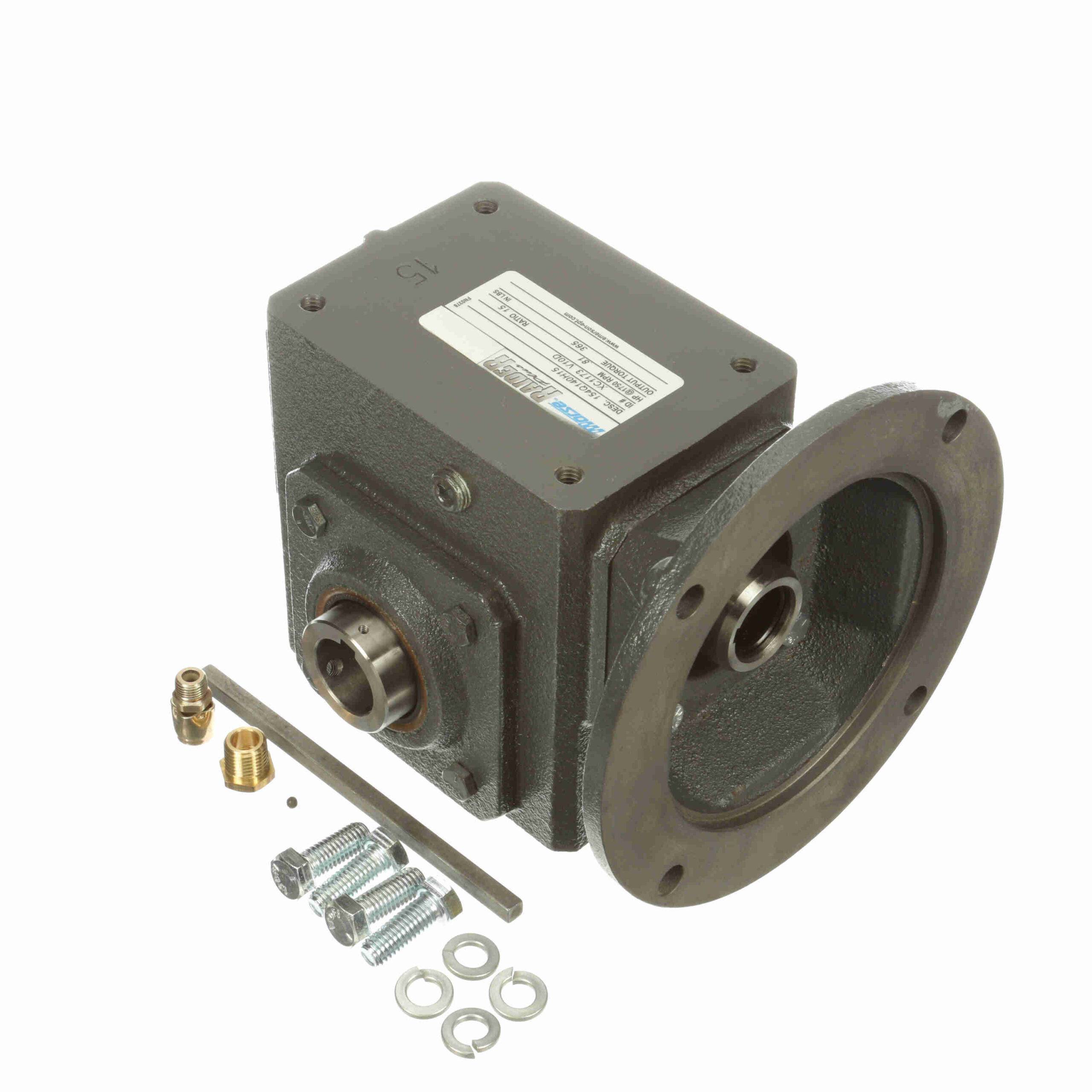

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 154Q140H15 010
$1,441.09
Out of stock
Out of stock
| Input Keyway (C Face): | 3/16 x 3/32 | Reducer Style: | Standard |
|---|---|---|---|
| Thrust Rating - output shaft: | 1144 | Input Bore (C Face): | 0.875 |
| Input Speed: | 1750 | Motor Frame Size: | 140TC |
| Ratio: | 15:1 | Efficiency: | 80 |
| Manufacturer Reducer Size: | 154 | Maximum Input HP: | 1.003 hp @ 1750 rpm |
| Frame Size: | 140TC | Input Style: | C-Face Quill |
| Mounting Style: | Shaft Mt | Input Diameter (in): | 0.875 in |
| Input HP @ 1750 RPM: | 1.003 | Product Type: | Worm Speed Reducer |
| Center Distance (in): | 1.54 | No. of Gear Reductions: | Single |
| Series Code: | Raider | Service Factor: | 1 |
| Ratio Range: | 15:01 | Output Diameter (in): | 0.625 in |
| Gear Type: | Worm | Output Shaft Direction: | L or R |
| Housing Material: | Cast Iron | Output Shaft: | Hollow Bore |
| Overhung Load Rating (Output Shaft(lb)): | 860 lb | Output Torque Rating (in-lb): | 446 in-lbs @1750 input RPM in/lbs |
| UPC: | 6, 62289E+11 | Weight: | 24.19 LB |
| Packaged Length: | 9.1 Inches | Packaged Width: | 9.5 Inches |
| Packaged Height: | 8.8 Inches |
