- Single Flex disc couplings for angular misalignment applications only.
- Unitized Disc Packs for ease of maintenance, replaceable without moving the connected equipment.
- HT (High Torque) disc packs for medium and heavy duty applications.
- Typically used at each end of a floating shaft.
153 KD 4 SS

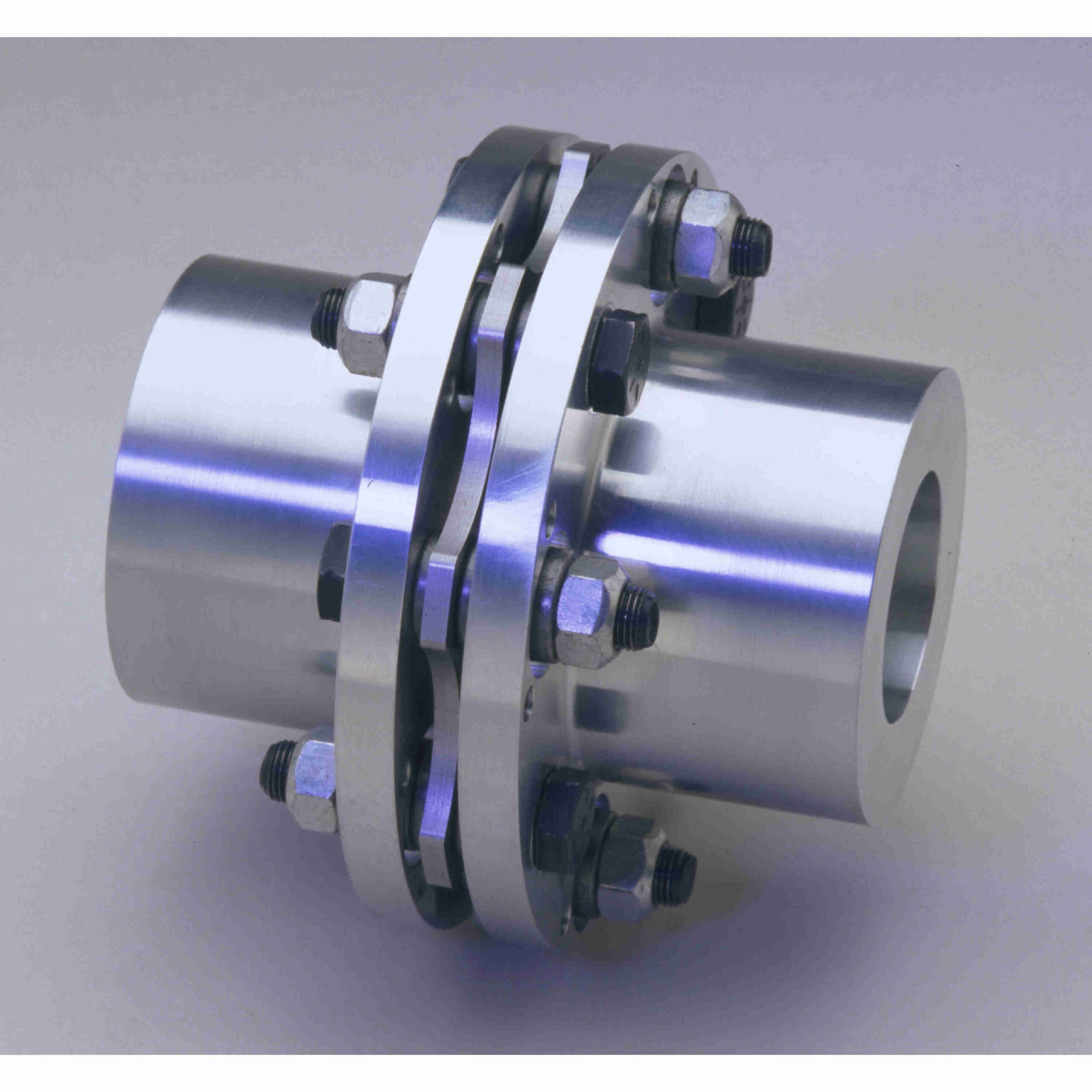

Kop-Flex Disc Coupling – Style KD4 – Size 153 – Rough Bore – 153 KD 4 SS
Out of stock
| Total WR2 (lb-in2): | 38.5 psi | Coupling Size: | 153 |
|---|---|---|---|
| Bore Type: | Rough Bore | Configuration: | 2 standard hubs |
| Total Length (Std Hub Post) (in): | 4.27 in | Style: | KD4 |
| Axial Capacity (+/-): | 0.07 | Outside Diameter (in): | 5.38 in |
| Hub Material: | Carbon Steel | Length Through Bore standard hub (in): | 1.94 in |
| Torque Rating (in-lb): | 13, 600 in/lbs | Torque [Max] (ft-lb): | 2, 267 ft/lbs |
| Disc Coupling Type: | Single Flex | Disc Shape: | Scalloped |
| Hub Diameter (in): | 3.54 in | Bore Size Min (in): | 0.75 in |
| UPC: | 662384154740 | Weight: | 16.04 LB |
