- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
13LF075X1/2

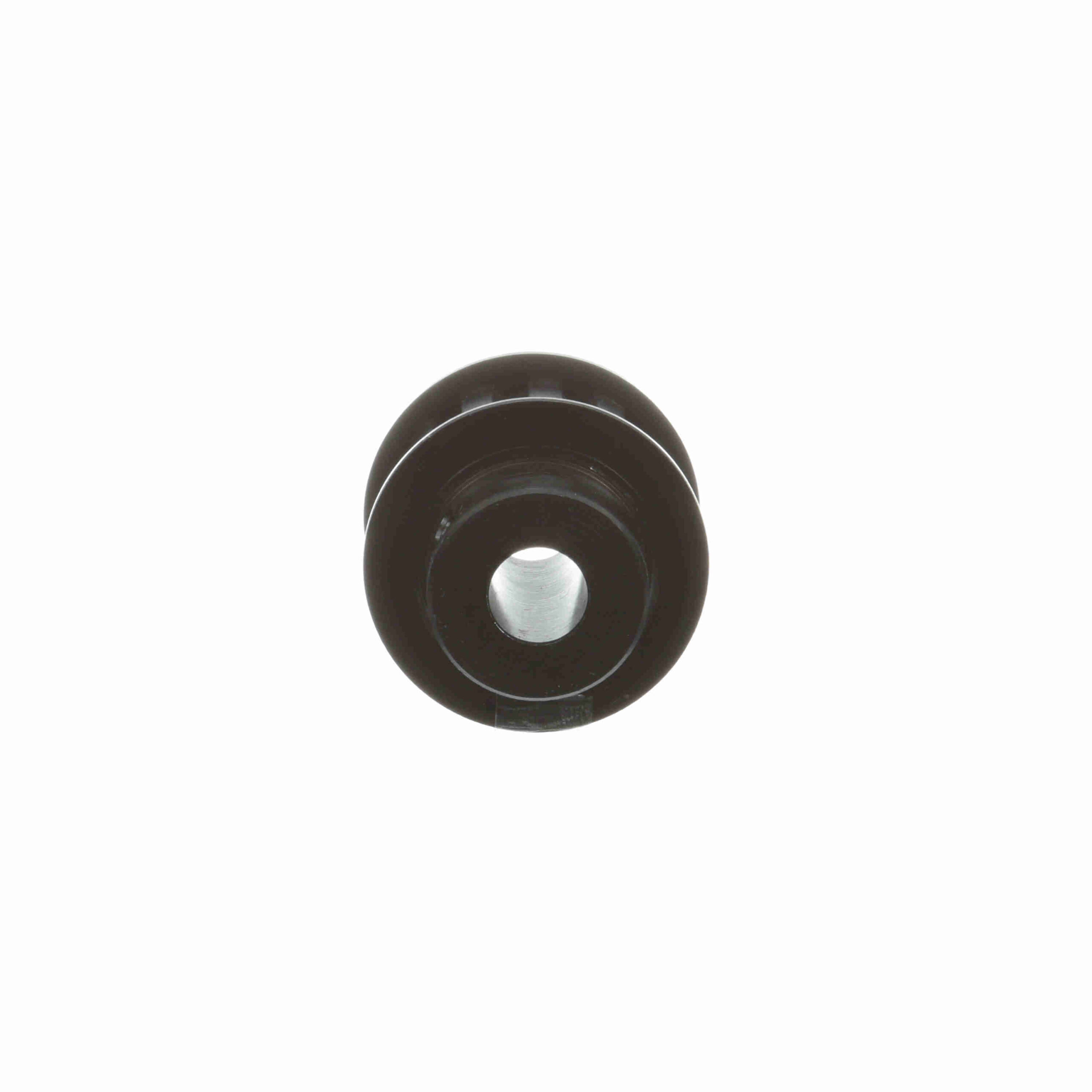

Browning Steel Finish Bore Gearbelt Pulley – 13LF075X1/2
$119.17
Out of stock
Out of stock
| Number of teeth: | 13 | Product Type: | Gearbelt Pulley |
|---|---|---|---|
| Bore Range: | 0.5 | Width (mm): | 19.05 mm |
| Material: | Steel | Bore Type: | Finish Bore |
| Outside Diameter (mm): | 38.6588 mm | Belt Section: | L |
| Width (in): | 0.75 in | Pitch Diameter (in): | 1.552 in |
| Flange (in): | 1.781 in | Outside Diameter (in): | 1.522 in |
| Face Width: | 1 | Number of Hubs: | 1 |
| Pulley Construction: | Solid | With Flanges: | With Flanges |
| Length Through Bore: | 1.5 | Hub Diameter (in): | 1.125 in |
| Hub Projection: | 0.5 | Bore Diameter (in): | 0.5 in |
| Overall Length (in): | 1.5 in | UPC: | 662289211807 |
| Weight: | 0.60 LB | Packaged Length: | 2.56 Inches |
| Packaged Width: | 2.56 Inches | Packaged Height: | 1.94 Inches |
| HTC: | 8483.50.9080 | Country of Origin: | United States of America |
