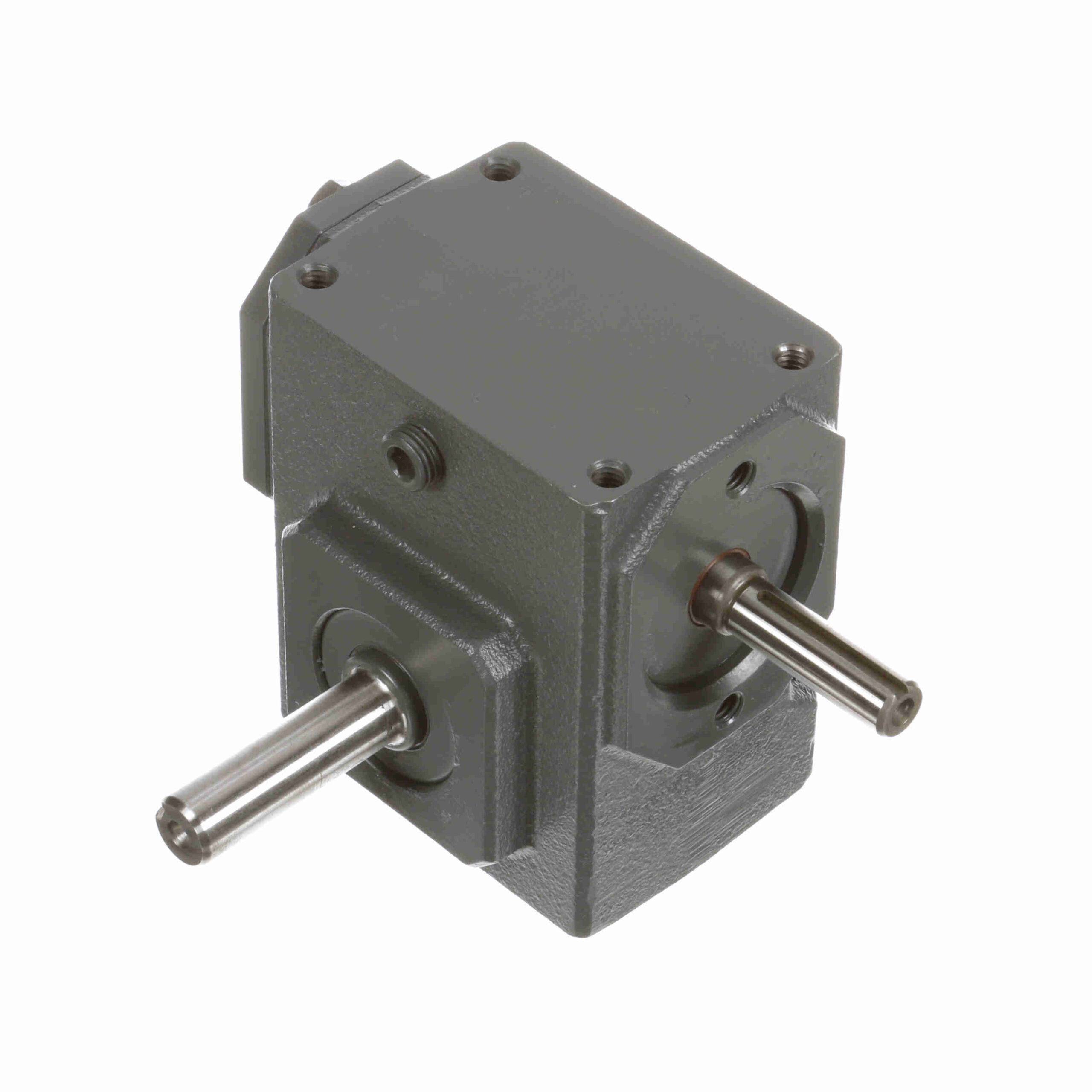

133UL5

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Ratio:	5:1	Key Length:	1
Input Speed:	1750	Key Sq.:	0.125
Efficiency:	80	Reducer Style:	Standard
Shaft Seal Material:	Nitrile	Thrust Rating - output shaft:	811
Gear Type:	Worm	Reducer:	Worm - Right Angle
Service Factor:	1	Model Code:	133U
Input Keyway:	1/8 X 1.38 in	Ratio Range:	5:1
Series Code:	Raider	Output Shaft Assembly Code:	L
Mounting Style:	No Base	Output Key:	3/16 X 1.31
Output Diameter (in):	0.625 in	Input Style:	Solid Shaft
Output RPM:	350	Assembly:	U-L
No. of Gear Reductions:	Single	Input HP @ 1750 RPM:	1.28
Product Type:	Worm Speed Reducer	Center Distance (in):	1.33
Input RPM:	1, 75	Input Diameter (in):	0.5 in
Output Shaft Direction:	Left	Output Torque Rating (in-lb):	209 in-lbs @1750 input RPM in/lbs
Overhung Load Rating (Output Shaft(lb)):	458 lb	Output Shaft:	Solid Shaft
Housing Material:	Cast Iron	UPC:	6, 62288E+11
Weight:	17.00 LB
