- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
133UH25 010

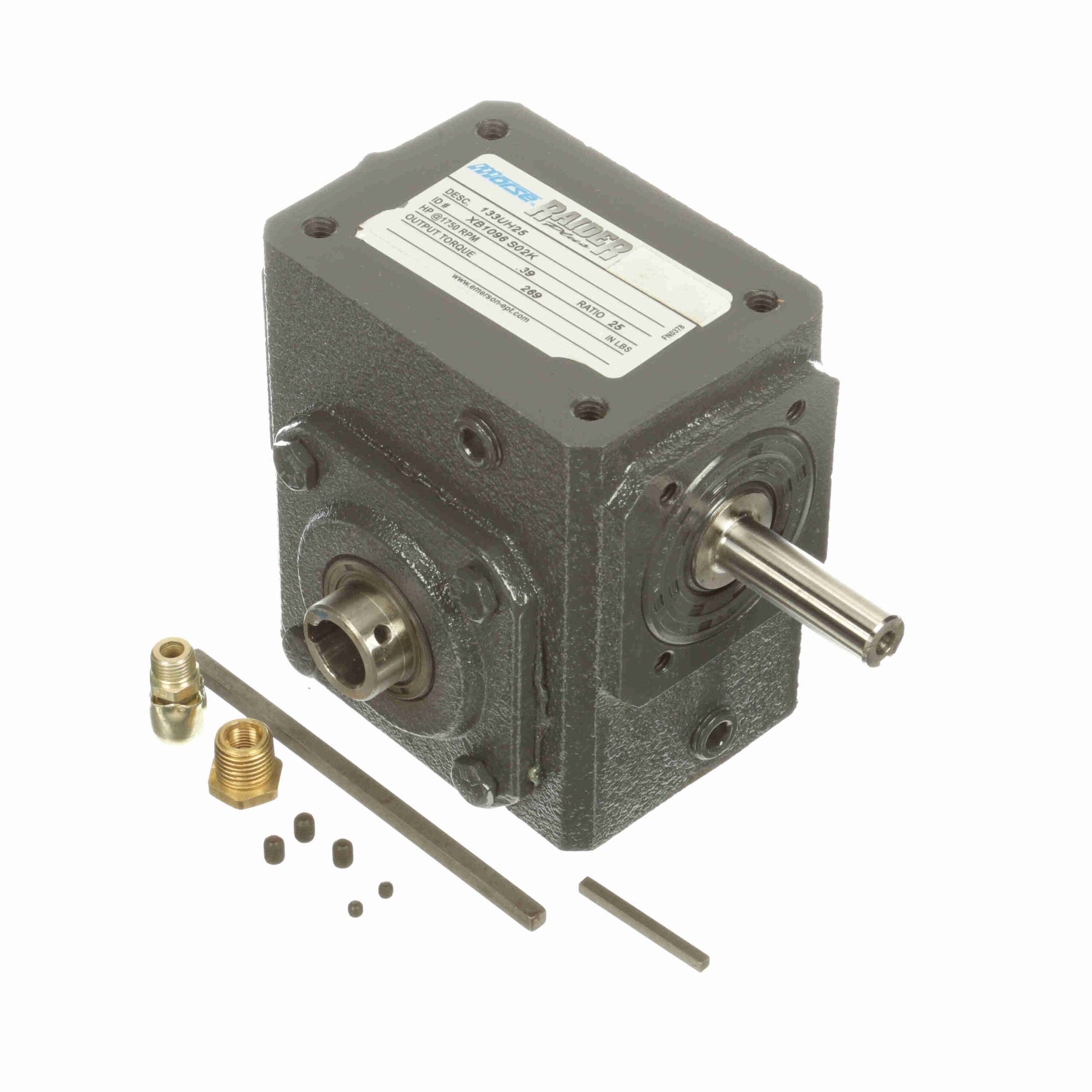

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 133UH25 010
$1,211.32
Out of stock
Out of stock
| Input Speed: | 1750 | Ratio: | 25:1 |
|---|---|---|---|
| Key Length: | 1 | Thrust Rating - output shaft: | 1144 |
| Reducer Style: | Standard | Efficiency: | 80 |
| Key Sq.: | 0.125 | Maximum Input HP: | 0.445 hp @ 1750 rpm |
| Manufacturer Reducer Size: | 133 | Product Type: | Worm Speed Reducer |
| Center Distance (in): | 1.33 | Input Diameter (in): | 0.5 in |
| Service Factor: | 1 | Series Code: | Raider |
| Input Style: | Shaft | Mounting Style: | Shaft Mt |
| Output Diameter (in): | 0.625 in | Ratio Range: | 25:1 |
| Input HP @ 1750 RPM: | 0.445 | No. of Gear Reductions: | Single |
| Gear Type: | Worm | Output Shaft Direction: | L or R |
| Housing Material: | Cast Iron | Output Torque Rating (in-lb): | 309 in-lbs @1750 input RPM in/lbs |
| Output Shaft: | Hollow Bore | Overhung Load Rating (Output Shaft(lb)): | 700 lb |
| UPC: | 6, 62289E+11 | Weight: | 18.00 LB |
