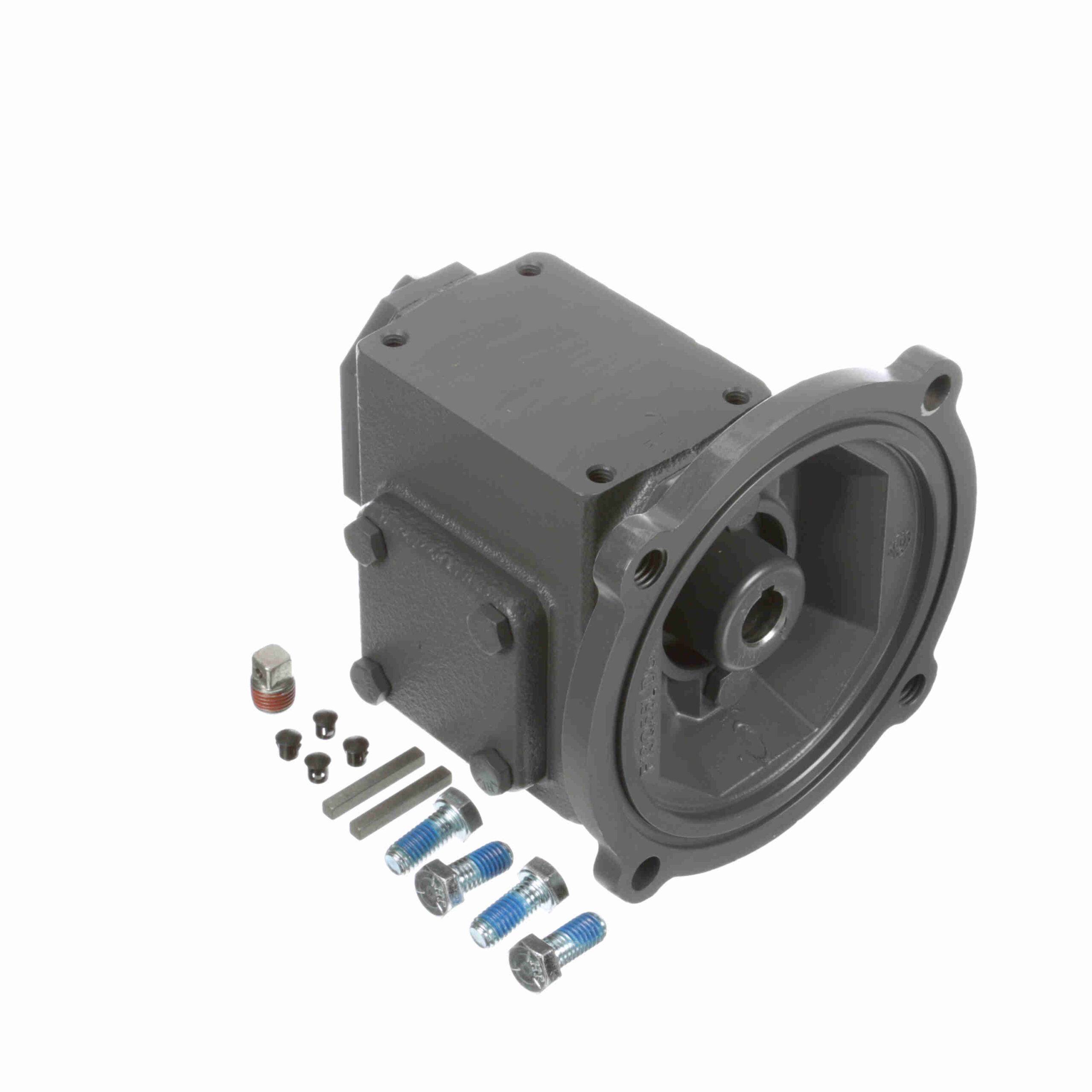

133Q56R50

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Bore (C Face):	0.625	Shaft Seal Material:	Nitrile
Reducer Style:	Standard	Efficiency:	80
Thrust Rating - output shaft:	1399	Input Speed:	1750
Motor Frame Size:	56C	Ratio:	50:1
Input Keyway (C Face):	3/16 X 3/32	Assembly:	Q-R
Input Style:	C-Face Quill	Input HP @ 1750 RPM:	0.22
Series Code:	Raider	Gear Type:	Worm
Product Type:	Worm Speed Reducer	Output Key:	3/16 X 1.31
Frame Size:	56C	Reducer:	Worm - Right Angle
Input RPM:	1, 750	Ratio Range:	50:01:00
Mounting Style:	No Base	Model Code:	133Q
No. of Gear Reductions:	Single	Output Diameter (in):	0.625 in
Center Distance (in):	1.33	Output RPM:	35
Output Shaft Assembly Code:	R	Service Factor:	1
Input Diameter (in):	0.625 in	Output Shaft Direction:	Right
Housing Material:	Cast Iron	Output Torque Rating (in-lb):	327 in-lbs @1750 input RPM in/lbs
Output Shaft:	Solid Shaft	Overhung Load Rating (Output Shaft(lb)):	458 lb
UPC:	6, 62288E+11	Weight:	17.00 LB
