- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
133Q56L20

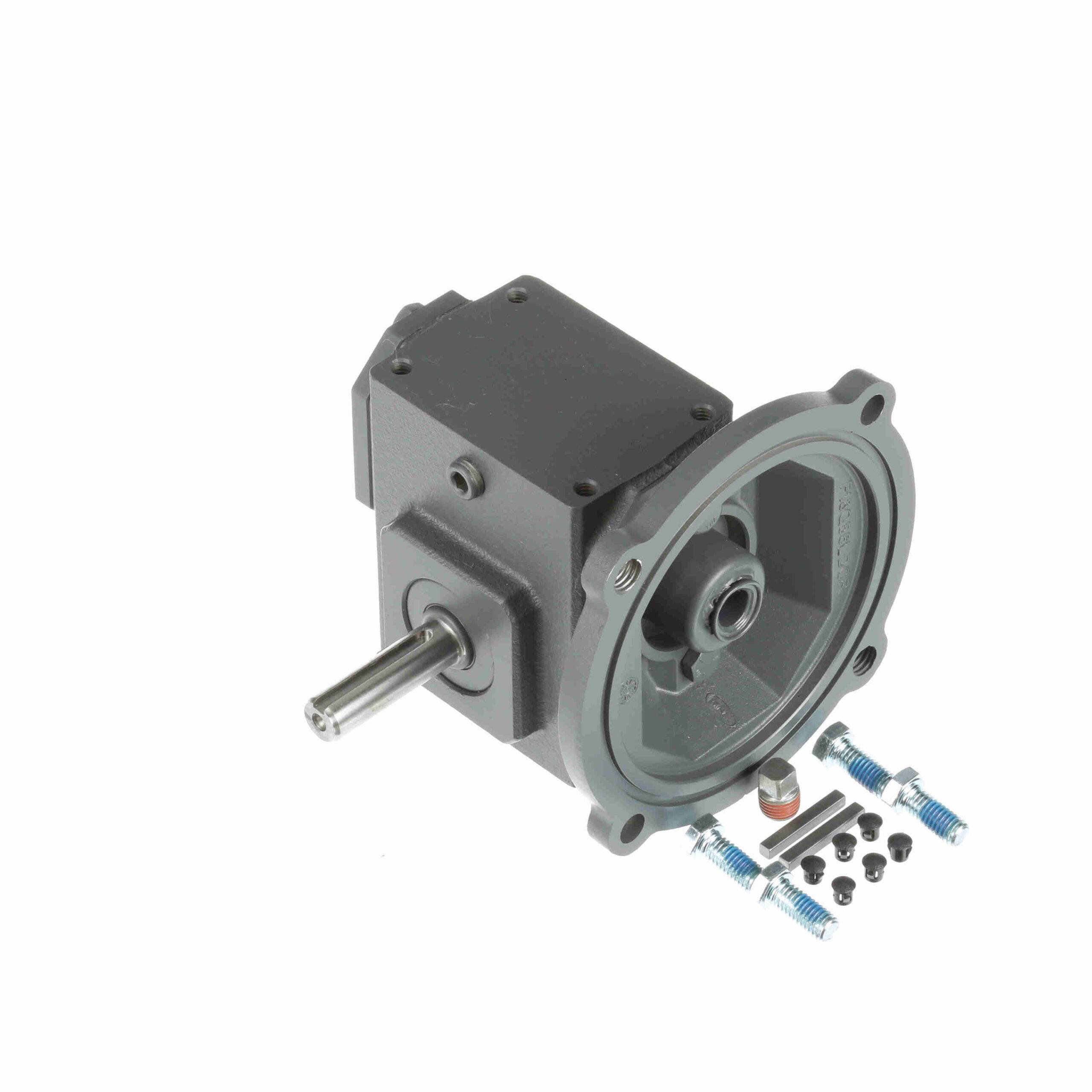

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 133Q56L20
$888.88
Out of stock
Out of stock
| Shaft Seal Material: | Nitrile | Thrust Rating - output shaft: | 1241 |
|---|---|---|---|
| Reducer Style: | Standard | Efficiency: | 80 |
| Input Speed: | 1750 | Motor Frame Size: | 56C |
| Ratio: | 20:1 | Input Keyway (C Face): | 3/16 X 3/32 |
| Input Bore (C Face): | 0.625 | Output RPM: | 87.5 |
| Output Diameter (in): | 0.625 in | Input Diameter (in): | 0.625 in |
| Service Factor: | 1 | Ratio Range: | 20:1 |
| Output Shaft Assembly Code: | L | Model Code: | 133Q |
| Output Key: | 3/16 X 1.31 | Assembly: | Q-L |
| Input RPM: | 1, 750 | Series Code: | Raider |
| Frame Size: | 56C | Mounting Style: | No Base |
| Input Style: | C-Face Quill | No. of Gear Reductions: | Single |
| Product Type: | Worm Speed Reducer | Gear Type: | Worm |
| Reducer: | Worm - Right Angle | Input HP @ 1750 RPM: | 0.46 |
| Center Distance (in): | 1.33 | Output Shaft Direction: | Left |
| Housing Material: | Cast Iron | Overhung Load Rating (Output Shaft(lb)): | 458 lb |
| Output Torque Rating (in-lb): | 320 in-lbs @1750 input RPM in/lbs | Output Shaft: | Solid Shaft |
| UPC: | 6, 62288E+11 | Weight: | 17.00 LB |
