- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
133Q56H30 010

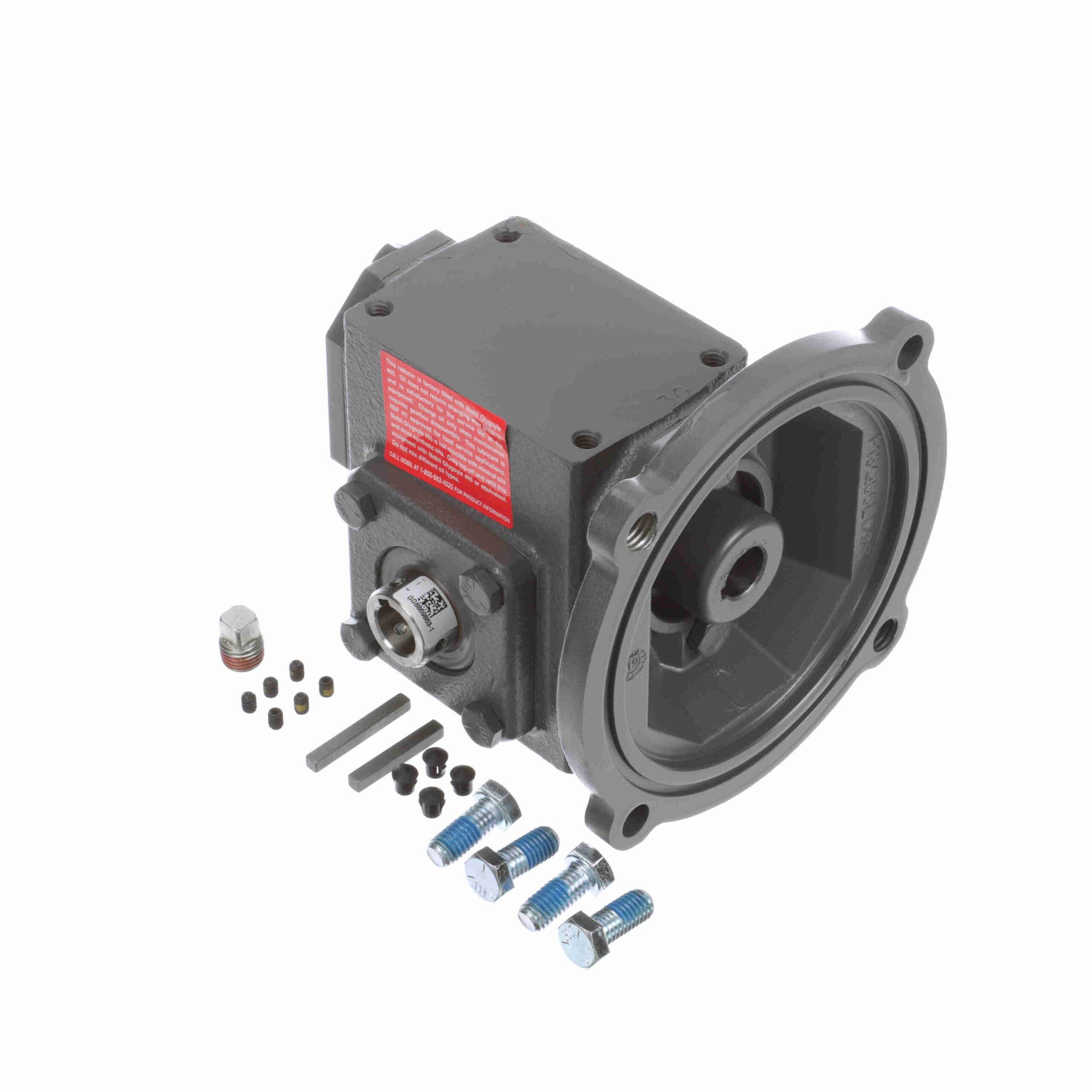

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 133Q56H30 010
$1,412.59
Out of stock
Out of stock
| Input Speed: | 1750 | Ratio: | 30:1 |
|---|---|---|---|
| Input Bore (C Face): | 0.625 | Thrust Rating - output shaft: | 1144 |
| Input Keyway (C Face): | 3/16 x 3/32 | Efficiency: | 80 |
| Reducer Style: | Standard | Motor Frame Size: | 56C |
| Ratio Range: | 30:1 | Input HP @ 1750 RPM: | 0.395 |
| Frame Size: | 56C | Gear Type: | Worm |
| Mounting Style: | Shaft Mt | Service Factor: | 1 |
| Center Distance (in): | 1.33 | Product Type: | Worm Speed Reducer |
| Input Style: | C-Face Quill | Series Code: | Raider |
| No. of Gear Reductions: | Single | Input Diameter (in): | 0.625 in |
| Output Diameter (in): | 0.625 in | Output Shaft Direction: | L or R |
| Overhung Load Rating (Output Shaft(lb)): | 700 lb | Output Shaft: | Hollow Bore |
| Output Torque Rating (in-lb): | 314 in-lbs @1750 input RPM in/lbs | Housing Material: | Cast Iron |
| UPC: | 6, 62288E+11 | Weight: | 18.00 LB |
