- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
133Q56H15 010

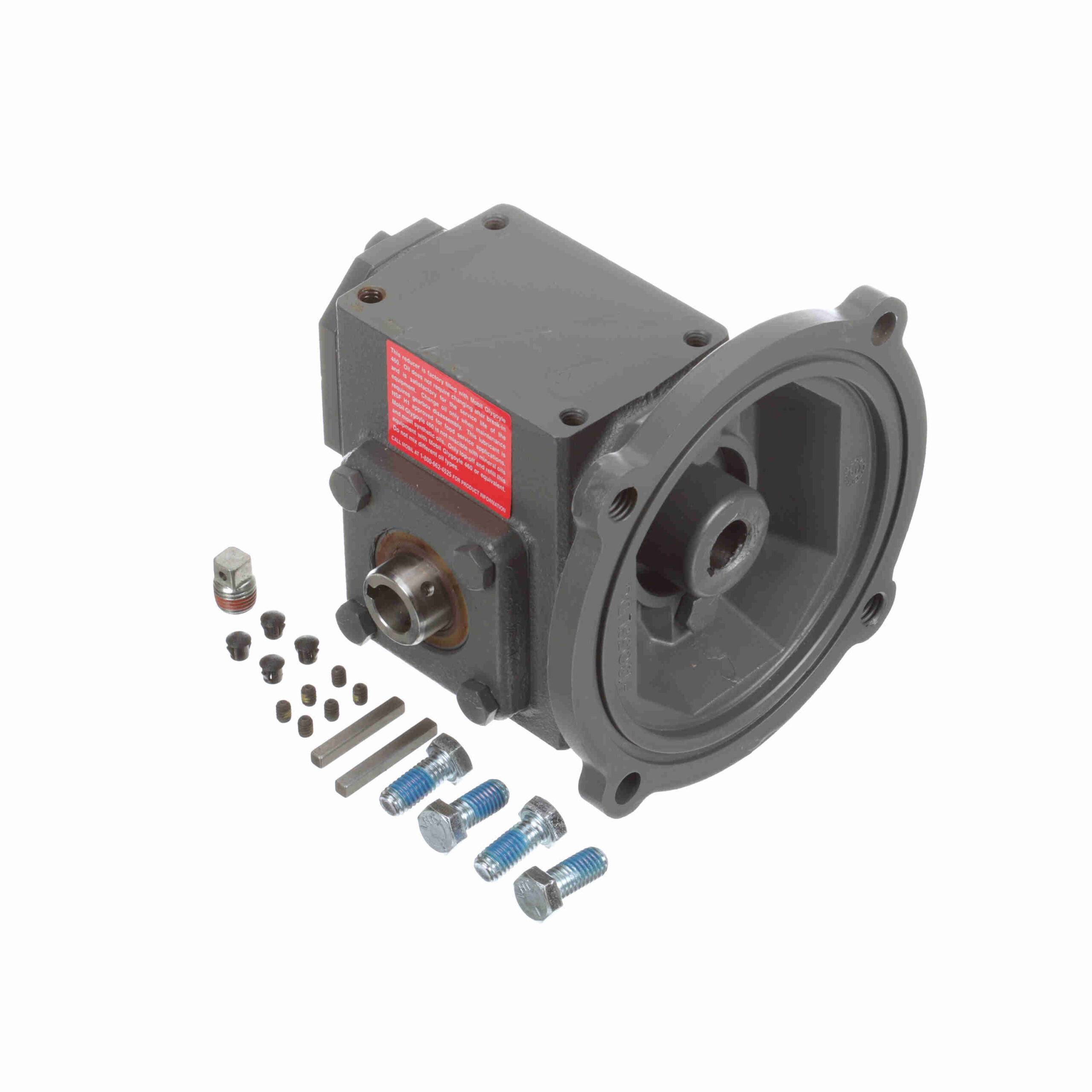

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 133Q56H15 010
$1,326.81
Out of stock
Out of stock
| Motor Frame Size: | 56C | Input Keyway (C Face): | 3/16 x 3/32 |
|---|---|---|---|
| Input Bore (C Face): | 0.625 | Input Speed: | 1750 |
| Efficiency: | 80 | Ratio: | 15:1 |
| Thrust Rating - output shaft: | 1144 | Reducer Style: | Standard |
| Input HP @ 1750 RPM: | 0.642 | Gear Type: | Worm |
| Service Factor: | 1 | Center Distance (in): | 1.33 |
| Product Type: | Worm Speed Reducer | Mounting Style: | Shaft Mt |
| No. of Gear Reductions: | Single | Input Diameter (in): | 0.625 in |
| Ratio Range: | 15:1 | Series Code: | Raider |
| Frame Size: | 56C | Input Style: | C-Face Quill |
| Output Diameter (in): | 0.625 in | Output Shaft Direction: | L or R |
| Output Torque Rating (in-lb): | 292 in-lbs @1750 input RPM in/lbs | Overhung Load Rating (Output Shaft(lb)): | 700 lb |
| Output Shaft: | Hollow Bore | Housing Material: | Cast Iron |
| UPC: | 6, 62288E+11 | Weight: | 14.15 LB |
| Packaged Length: | 11.1 Inches | Packaged Width: | 10.4 Inches |
| Packaged Height: | 11.8 Inches |
