- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
133Q56H10 010

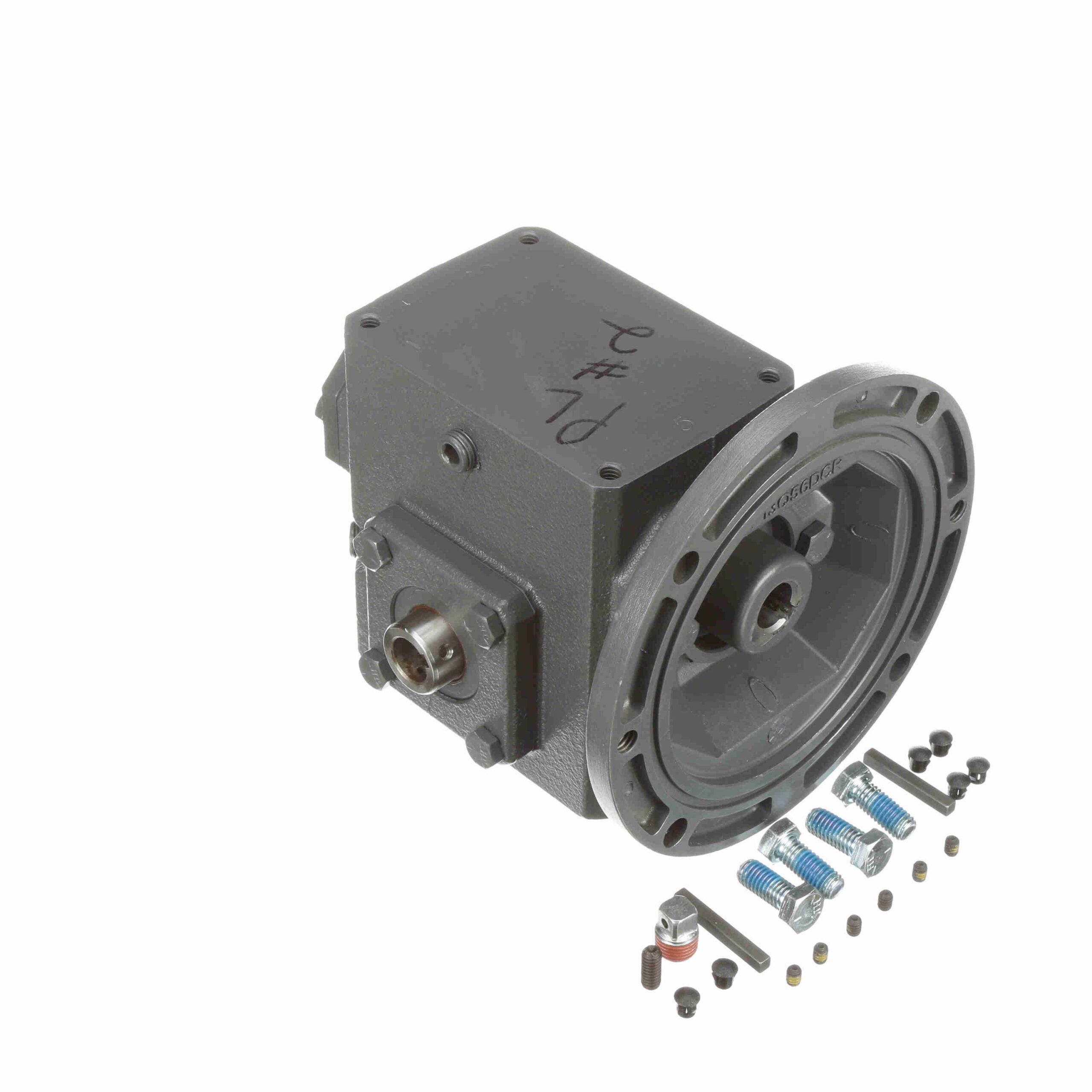

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 133Q56H10 010
$1,266.51
Out of stock
Out of stock
| Ratio: | 10:1 | Motor Frame Size: | 56C |
|---|---|---|---|
| Reducer Style: | Standard | Input Speed: | 1750 |
| Efficiency: | 80 | Input Keyway (C Face): | 3/16 x 3/32 |
| Thrust Rating - output shaft: | 1070 | Input Bore (C Face): | 0.625 |
| No. of Gear Reductions: | Single | Series Code: | Raider |
| Mounting Style: | Shaft Mt | Service Factor: | 1 |
| Frame Size: | 56C | Input Style: | C-Face Quill |
| Gear Type: | Worm | Center Distance (in): | 1.33 |
| Ratio Range: | 10:1 | Input HP @ 1750 RPM: | 0.823 |
| Product Type: | Worm Speed Reducer | Input Diameter (in): | 0.625 in |
| Output Diameter (in): | 0.625 in | Output Shaft Direction: | L or R |
| Housing Material: | Cast Iron | Overhung Load Rating (Output Shaft(lb)): | 700 lb |
| Output Shaft: | Hollow Bore | Output Torque Rating (in-lb): | 263 in-lbs @1750 input RPM in/lbs |
| UPC: | 6, 62288E+11 | Weight: | 18.00 LB |
