- Double row ball bearing
- Outer ring raceway: Spherical
- Inner ring raceway: 1 linear surface
- Absorb shaft misalignments (max. 3 degrees depending of series number)
1311

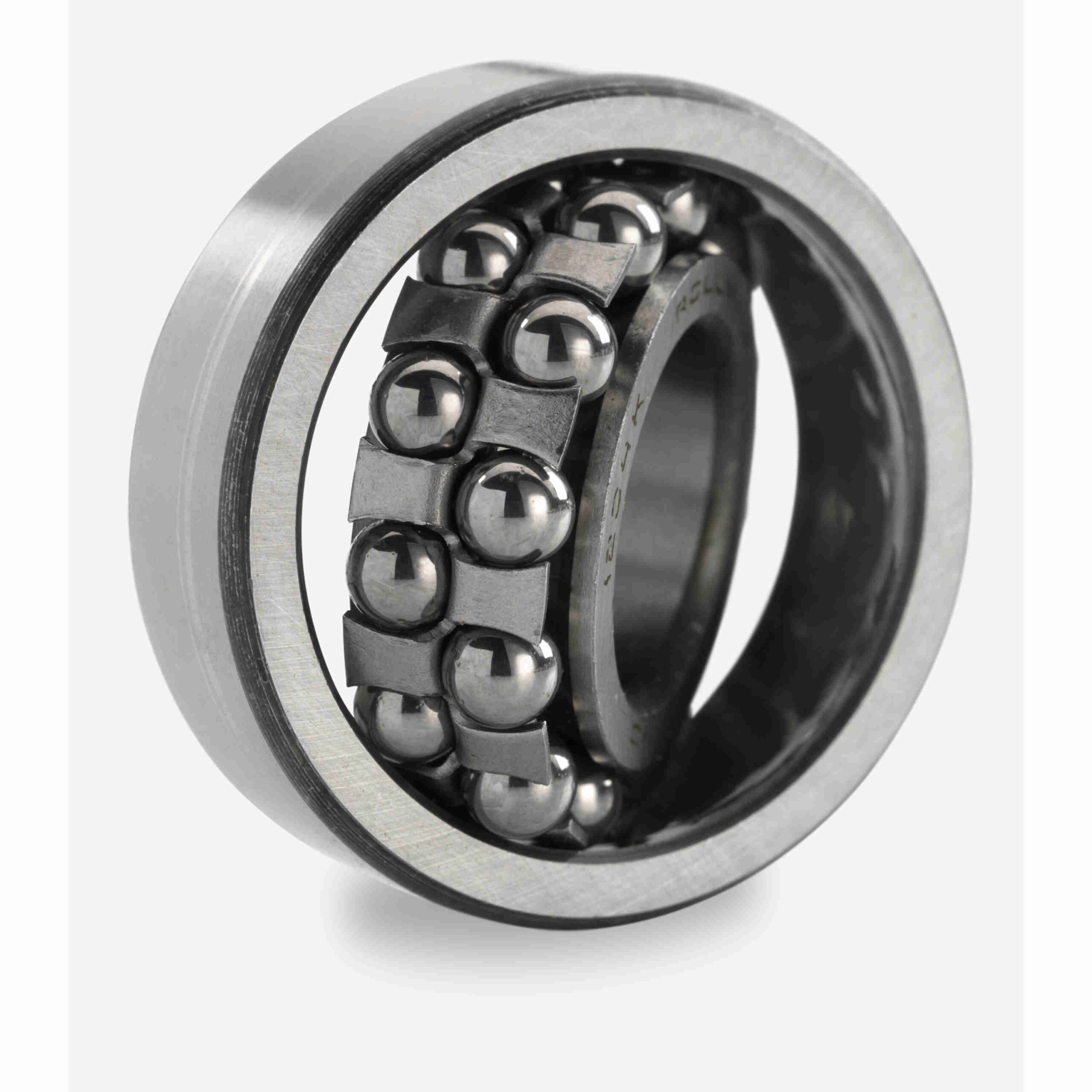

Rollway Radial Ball Bearing – Self-Aligning – Straight Bore – 1311
$400.75
Out of stock
Out of stock
| Angular Misalignment: | +/- 3 | Series: | 1300 |
|---|---|---|---|
| Radial Clearance: | Normal | Dynamic Load Rating (kN): | 51.3 kN |
| Bore Type: | Straight | Seal Type: | Unsealed |
| Misalignment: | Yes | Static Load Rating (kN): | 18.1 kN |
| Rolling Element: | Ball | Cage Material: | Steel |
| Material: | 52100 Bearing Steel | Static Load Rating (lb): | 4, 069 lb |
| Speed (Max) Grease (rpm): | 5, 000 rpm | Full Complement/Caged: | Caged |
| Sealed: | None | Dynamic Load Rating (lb): | 11, 533 lb |
| Duplexing: | No | Platform: | Self-Aligning Ball Bearings |
| Speed (Max) Oil (rpm): | 6, 000 rpm | Mounting Method: | Shaft |
| UPC: | 637410093553 | Weight: | 3.53 LB |
| Packaged Length: | 4.72 Inches | Packaged Width: | 1.14 Inches |
| Packaged Height: | 4.72 Inches | Country of Origin: | China |
