- Double row ball bearing
- Outer ring raceway: Spherical
- Inner ring raceway: 1 linear surface
- Absorb shaft misalignments (max. 3 degrees depending of series number)
1202

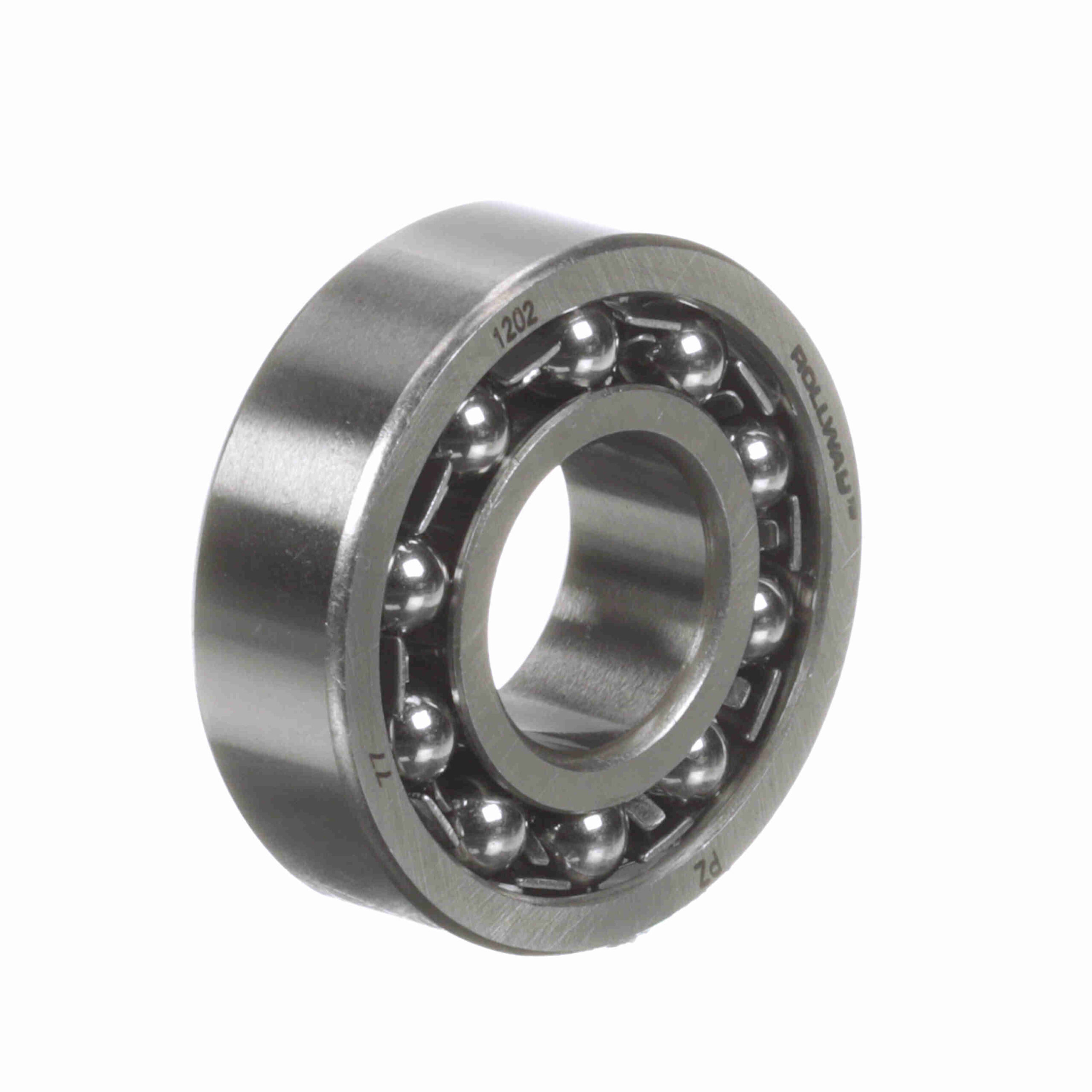

Rollway Radial Ball Bearing – Self-Aligning – Straight Bore – 1202
$74.26
Out of stock
Out of stock
| Radial Clearance: | Normal | Angular Misalignment: | +/- 2.5 |
|---|---|---|---|
| Series: | 1200 | Material: | 52100 Bearing Steel |
| Dynamic Load Rating (kN): | 7.5 kN | Static Load Rating (kN): | 1.8 kN |
| Bore Type: | Straight | Rolling Element: | Ball |
| Cage Material: | Steel | Misalignment: | Yes |
| Seal Type: | Unsealed | Static Load Rating (lb): | 393 lb |
| Speed (Max) Grease (rpm): | 19, 000 rpm | Platform: | Self-Aligning Ball Bearings |
| Duplexing: | No | Dynamic Load Rating (lb): | 1, 686 lb |
| Sealed: | None | Full Complement/Caged: | Caged |
| Speed (Max) Oil (rpm): | 24, 000 rpm | Mounting Method: | Shaft |
| UPC: | 637410092716 | Weight: | 0.11 LB |
| Packaged Length: | 1.38 Inches | Packaged Width: | 0.43 Inches |
| Packaged Height: | 1.38 Inches | Country of Origin: | China |
