- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement..
- Options and Accessories: Complete range of motor mounts, belt guards, backstops.
115SMFP25

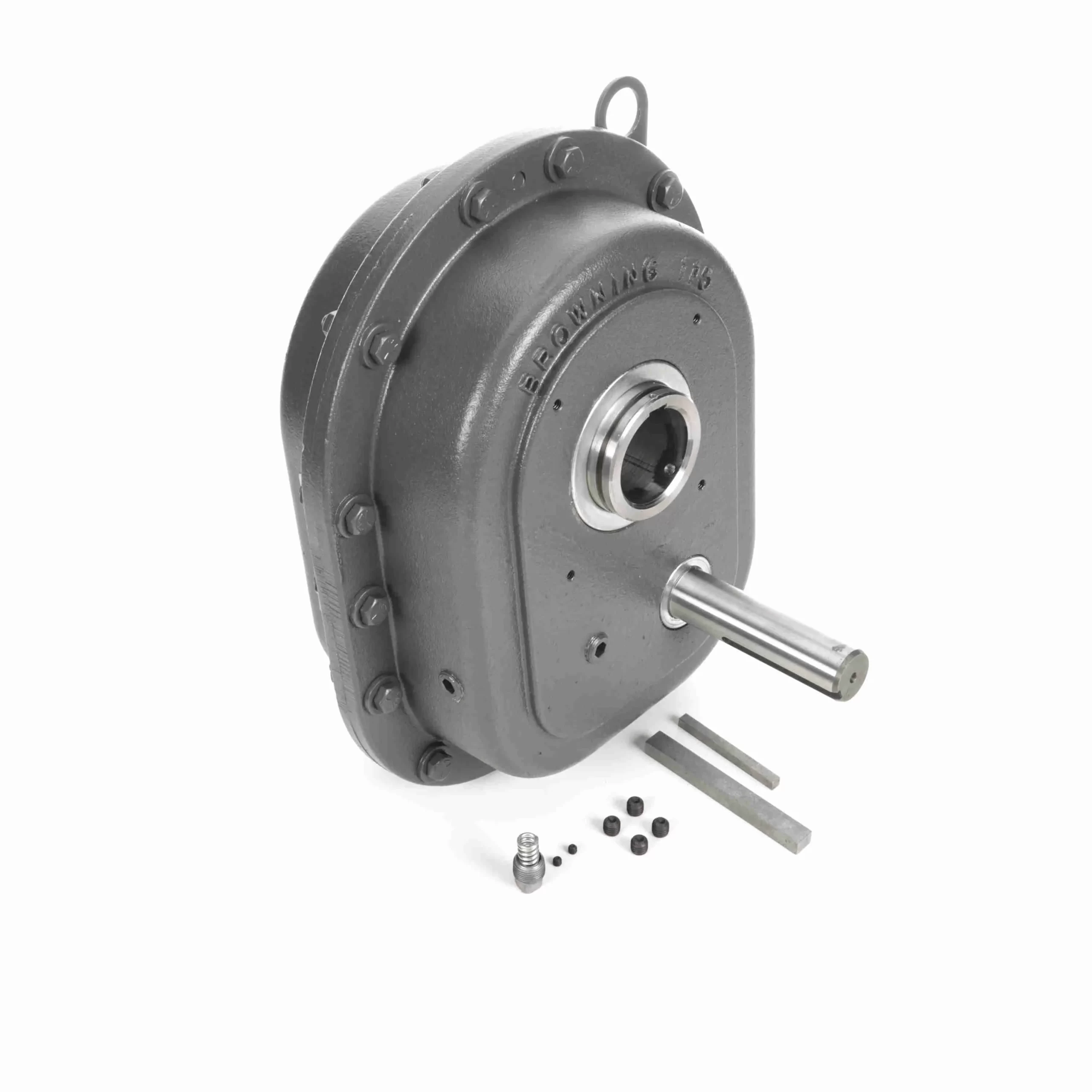

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Finished Bore Reducer – 115SMFP25
$6,174.51
Out of stock
Out of stock
| Product Type: | Finished Bore Plus (SMFP) | Ratio: | 25:1 |
|---|---|---|---|
| Output Speed: | 70 | Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP |
| Input Speed: | 1750 | Efficiency: | 80 |
| Housing Width (in): | 11 in | Housing Height (in): | 14.08 in |
| Housing Length (in): | 5.99 in | Reduction X:1: | 25:1 |
| Standards met: | AGMA | Output Diameter (in): | 1.938 in |
| Input Style: | Shaft | Mounting Style: | Shaft mount |
| Ratio Range: | 25:1 | Reducer Size: | 115 |
| Gear Type: | Helical | Bolt Size (in): | 0.375 in |
| Maximum Output Size (in): | 1.9375 in | Reduction: | Double |
| Output Bore: | Straight | Maximum Output RPM: | 80 |
| Drive Type: | Torque Arm | Output Torque Rating (in-lb): | 720.27 in-Lbs @1750 input rpm, 1 HP in/lbs |
| Input Shaft Keyseat (in): | .250 x .250 x 2.75 in | Output Shaft: | Hollow Bore |
| Output Bore Keyway (in): | .500 x .125 in | Housing Material: | Cast Iron |
| UPC: | 662288915584 | Weight: | 74.00 LB |
| Packaged Length: | 18.5 Inches | Packaged Width: | 13 Inches |
| Packaged Height: | 13.5 Inches | HTC: | 8483.40.1000 |
| Country of Origin: | United States of America |
