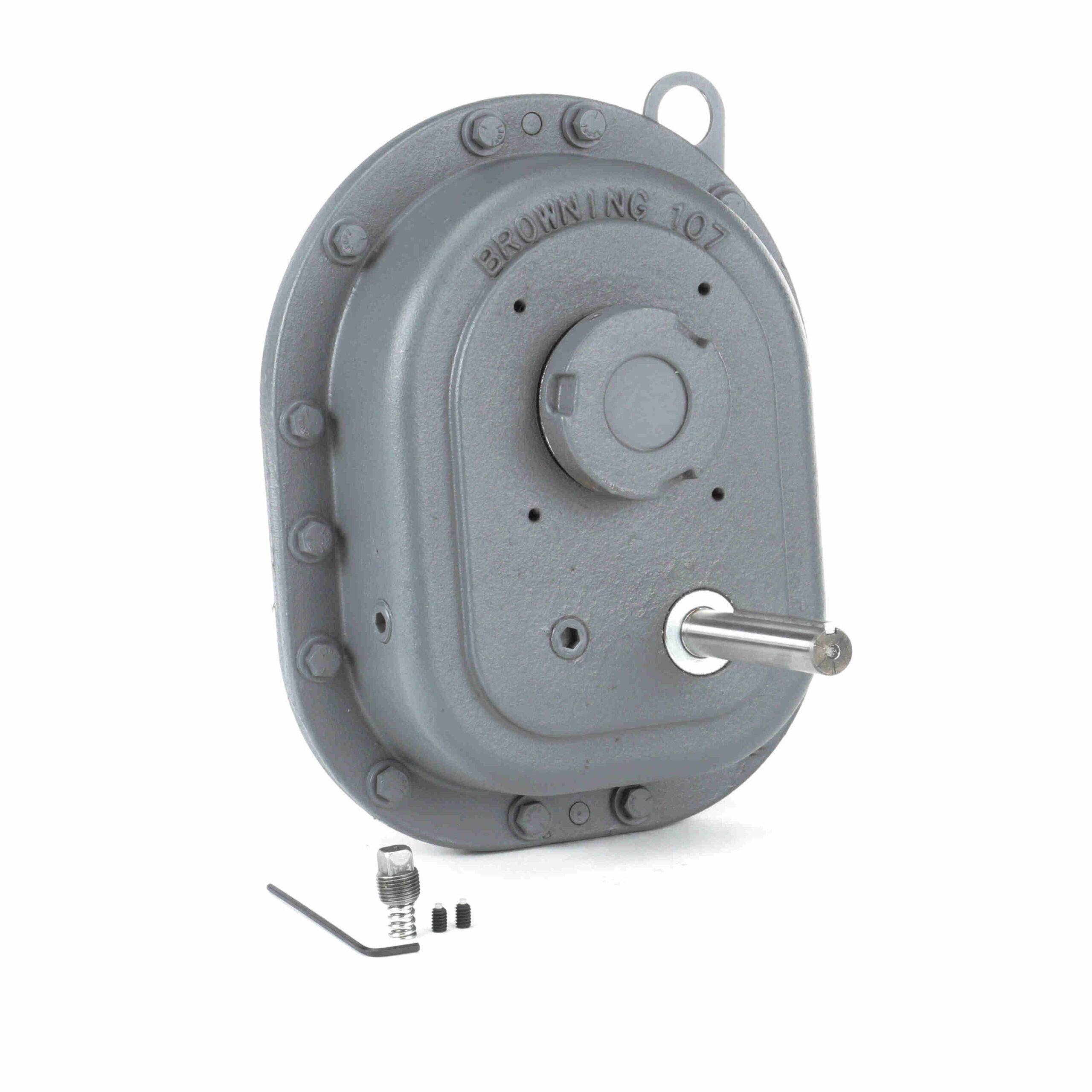

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer – 107SMTP09

SKU: PB0002 Category: Shaft Mounted Gearing

$4,084.87

Out of stock

Out of stock

Product Information
Specifications

Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on – easy off mounting, with stabilizer ring.
Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement.
Options and Accessories: Complete range of motor mounts, belt guards, backstops, and screw conveyor drive options.

Product Type:	TorqTaper Plus (SMTP)	Ratio:	9:1
Input Speed:	1750	Bolt Size (in):	0.375 in
Input Torque:	36.013 in-Lbs @1750 input rpm, 1 HP	Efficiency:	80
Output Speed:	17	Standards met:	AGMA
Housing Length (in):	7.89 in	Housing Height (in):	12.07 in
Housing Width (in):	9.76 in	Maximum Output Size (in):	1.4375 in
Input Style:	Shaft	Maximum Output Bore:	1.4375
Gear Type:	Helical	Ratio Range:	10:1
Reducer Size:	107	Mounting Style:	Shaft mount
Drive Type:	Torque Arm	Output Bore:	Tapered Bushing
Maximum Output RPM:	200	Reduction:	Double
Input Shaft Diameter:	0.75	Output Shaft:	Tapered Bore
Input Shaft Keyseat (in):	.188 x .188 x 2.88 in	Output Torque Rating (in-lb):	3707.29 in-Lbs @1750 input rpm, 1 HP in/lbs
Housing Material:	Cast Iron	UPC:	662460494722
Weight:	54.00 LB	Packaged Length:	18.5 Inches
Packaged Width:	13 Inches	Packaged Height:	13.5 Inches
HTC:	8483.40.1000	Country of Origin:	United States of America
