- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
100R40

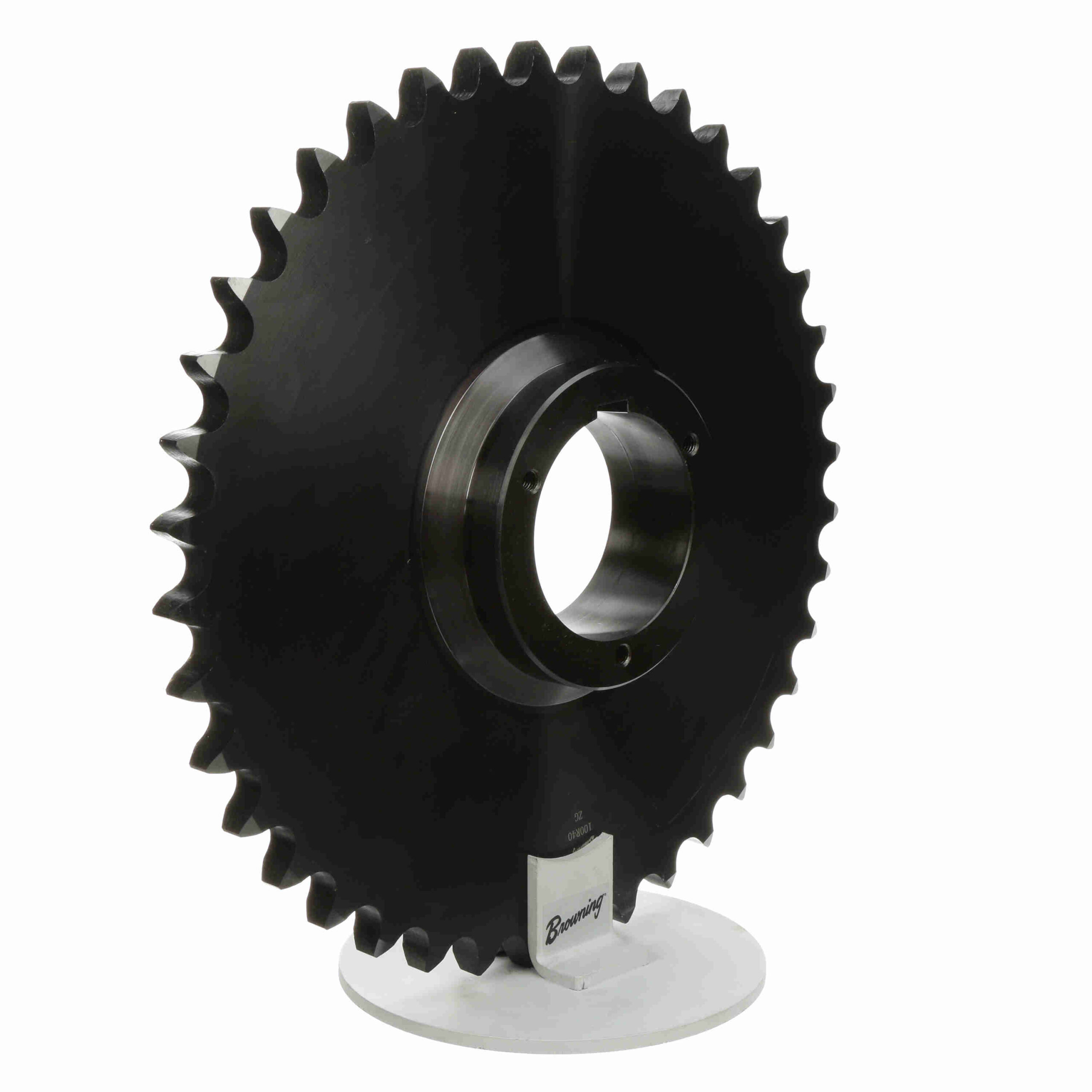

Browning Steel Bushed Bore Roller Chain Sprocket – 100R40
$1,265.94
Out of stock
Out of stock
| Bushing Used: | Split Taper | Bore (Min) (in): | 1.125 in |
|---|---|---|---|
| Material: | Steel | Chain Pitch (in): | 1.25 in |
| Pitch Diameter (in): | 15.932 in | Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain |
| Product Type: | Bushed Roller Chain Sprocket | Number of teeth: | 40 |
| Bore (Max) (in): | 3.75 in | Bore Type: | Bushed Bore |
| Outside Diameter (in): | 16.633 in | Overall Length (in): | 3.219375 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Minimum Bore (in): | 1.125 | Maximum Bore (in): | 3.75 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 0.692 |
| Pitch Type: | Single | UPC: | 662289137497 |
| Weight: | 40.90 LB | Packaged Length: | 17.00 Inches |
| Packaged Width: | 17.00 Inches | Packaged Height: | 3.00 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
