- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
100Q35

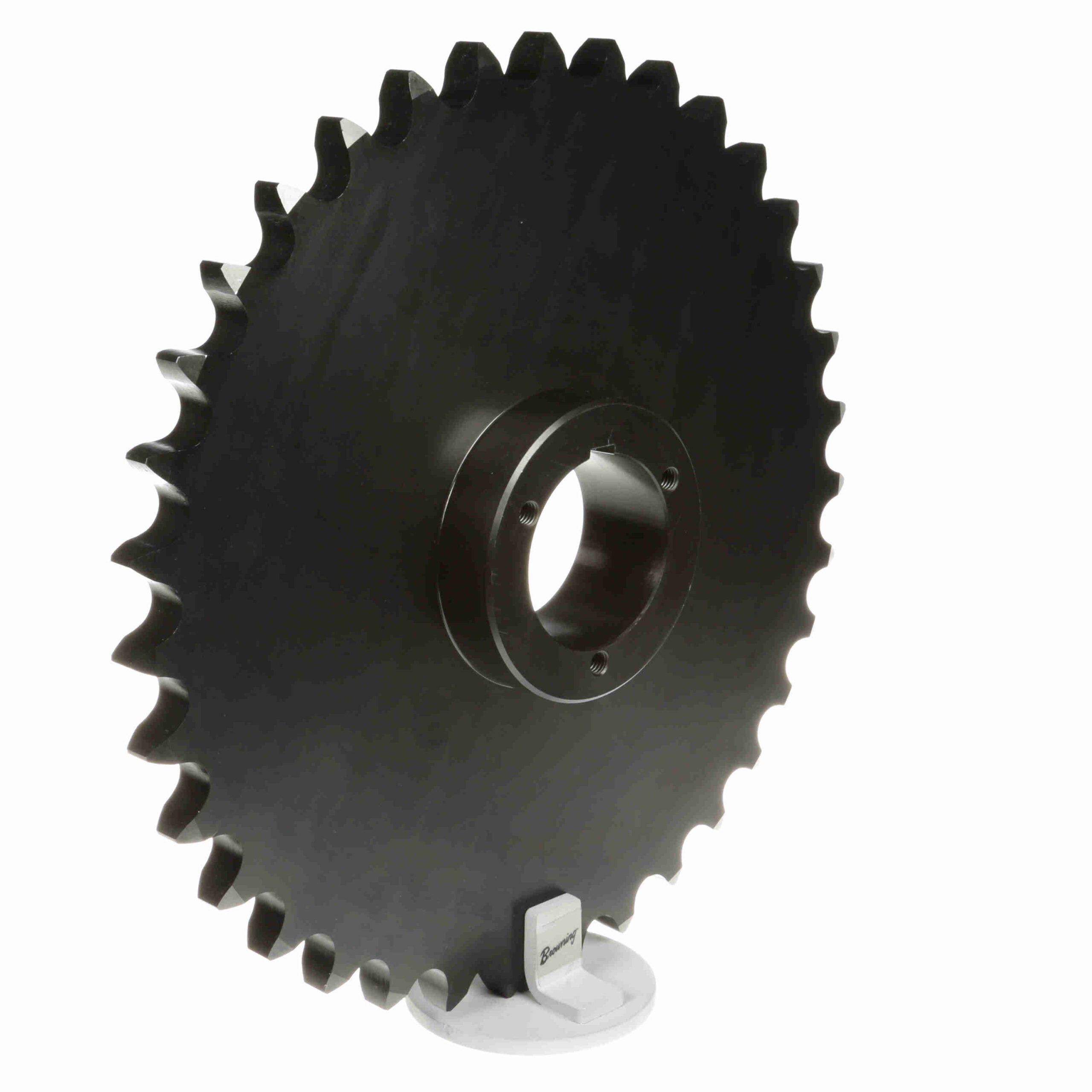

Browning Steel Bushed Bore Roller Chain Sprocket – 100Q35
$1,052.50
Out of stock
Out of stock
| Material: | Steel | Pitch Diameter (in): | 13.945 in |
|---|---|---|---|
| Chain Pitch (in): | 1.25 in | Product Type: | Bushed Roller Chain Sprocket |
| Bore (Max) (in): | 2.6875 in | Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain |
| Number of teeth: | 35 | Bushing Used: | Split Taper |
| Bore (Min) (in): | 0.75 in | Outside Diameter (in): | 14.639 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 2.887375 in |
| Number of Strands/Width: | 1 | Length Through Bore (in): | 2.5 in |
| Hub Diameter (in): | 4.125 in | Tooth Width (in): | 0.692 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Hardened Teeth: | No | Width Across Tooth Sets: | 0.692 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Hub Projection (in): | 1.906 | Overall Width (in): | 2.828125 in |
| UPC: | 662289227488 | Weight: | 30.99 LB |
| Packaged Length: | 15.30 Inches | Packaged Width: | 14.90 Inches |
| Packaged Height: | 2.70 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
